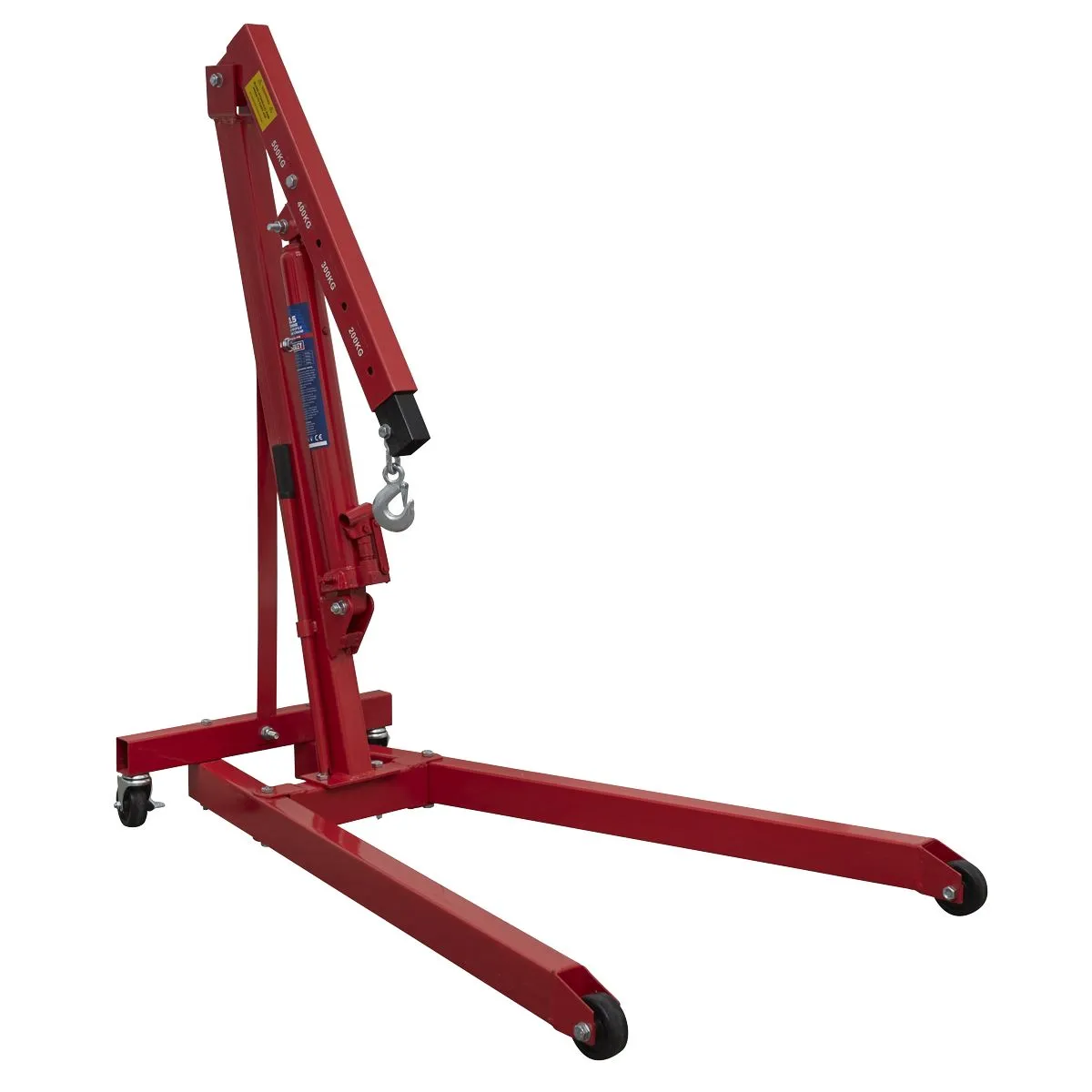

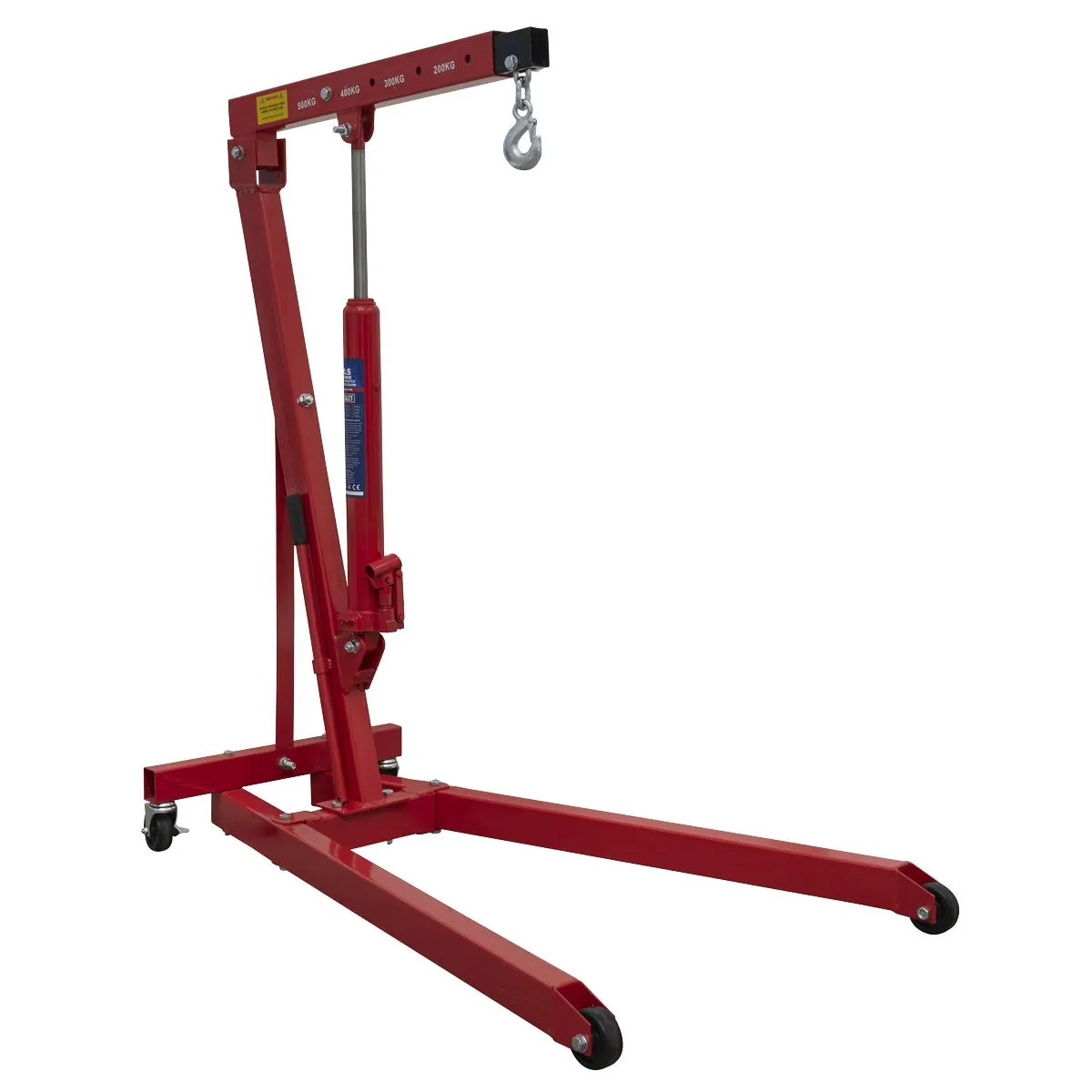

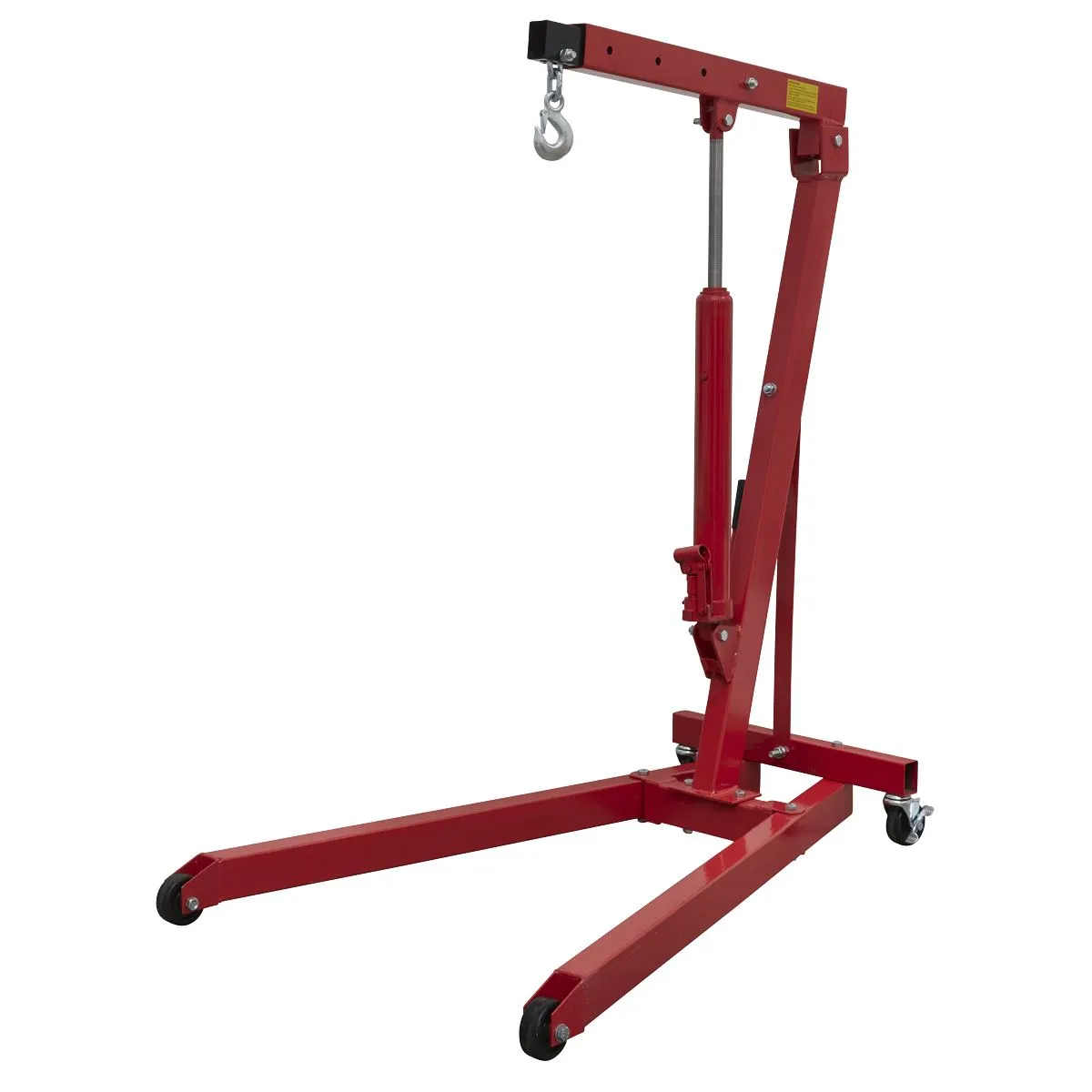

Sealey Low Profile Engine Crane 0.5 Tonne
Low entry engine crane with a height of only 100mm at the wheels.
Weighs only 37kg so is extremely lightweight and manoeuvrable.
Heavy-duty castors and pump access from side, for safe handling of loads.
Delivered in knock-down form to reduce freight costs, some self-assembly required.
Specification:
- Model No PH5
- Brand: Sealey
- Height Jib Down: 1330mm
- Height Legs Folded: n/a
- Height of Frame: 100mm
- Length Legs Extended: n/a
- Length of Jib Position 1: 750mm
- Length of Jib Position 2: 860mm
- Length of Jib Position 3: 980mm
- Length of Jib Position 4: 1100mm
- Length of Jib Position 5: n/a
- Length: 1210mm
- Lifting Capacity in Position 1: 500kg
- Lifting Capacity in Position 2: 400kg
- Lifting Capacity in Position 3: 300kg
- Lifting Capacity in Position 4: 200kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 1950mm
- Max. Lift Ht at Jib Position 2: 2050mm
- Max. Lift Ht at Jib Position 3: 2150mm
- Max. Lift Ht at Jib Position 4: 2250mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 37kg
- Rear Width: 550mm
- Width Front Frame: 800mm
- Width Inside Front Frame: 700mm
Catalogue Page: Page 316
